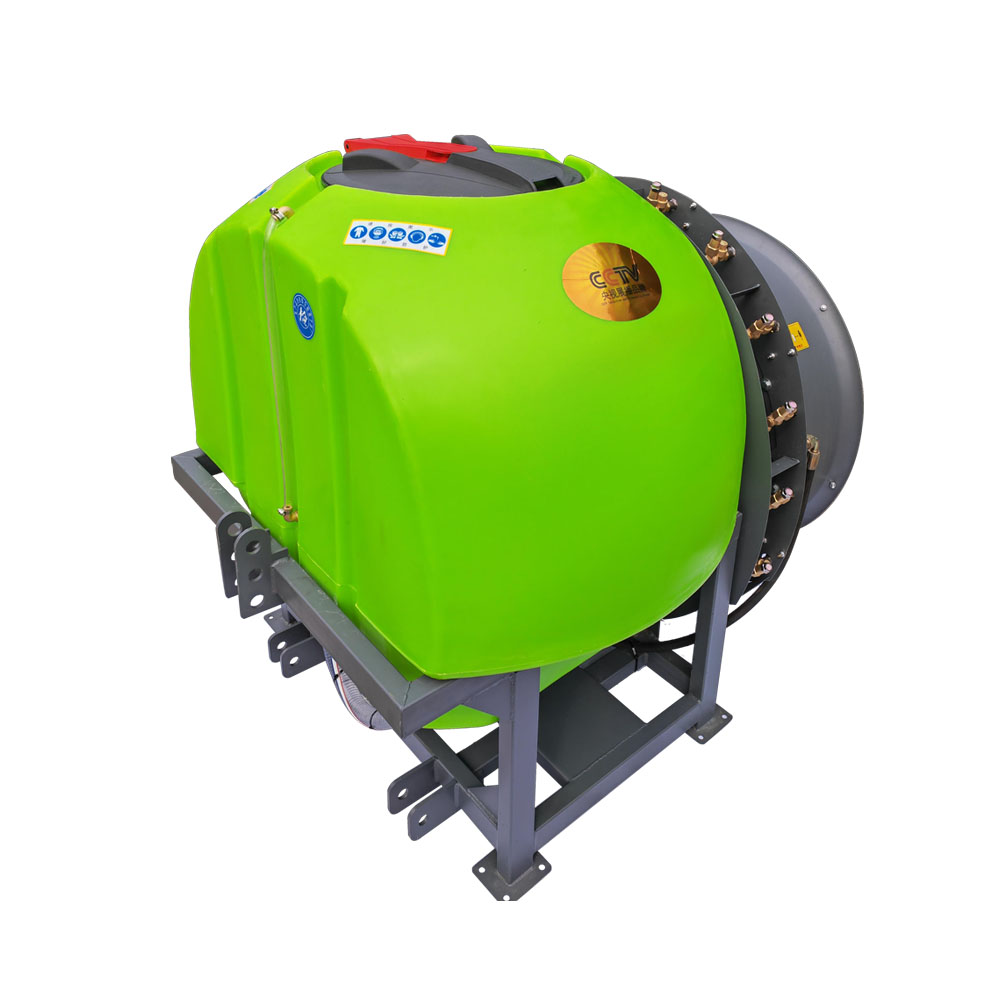

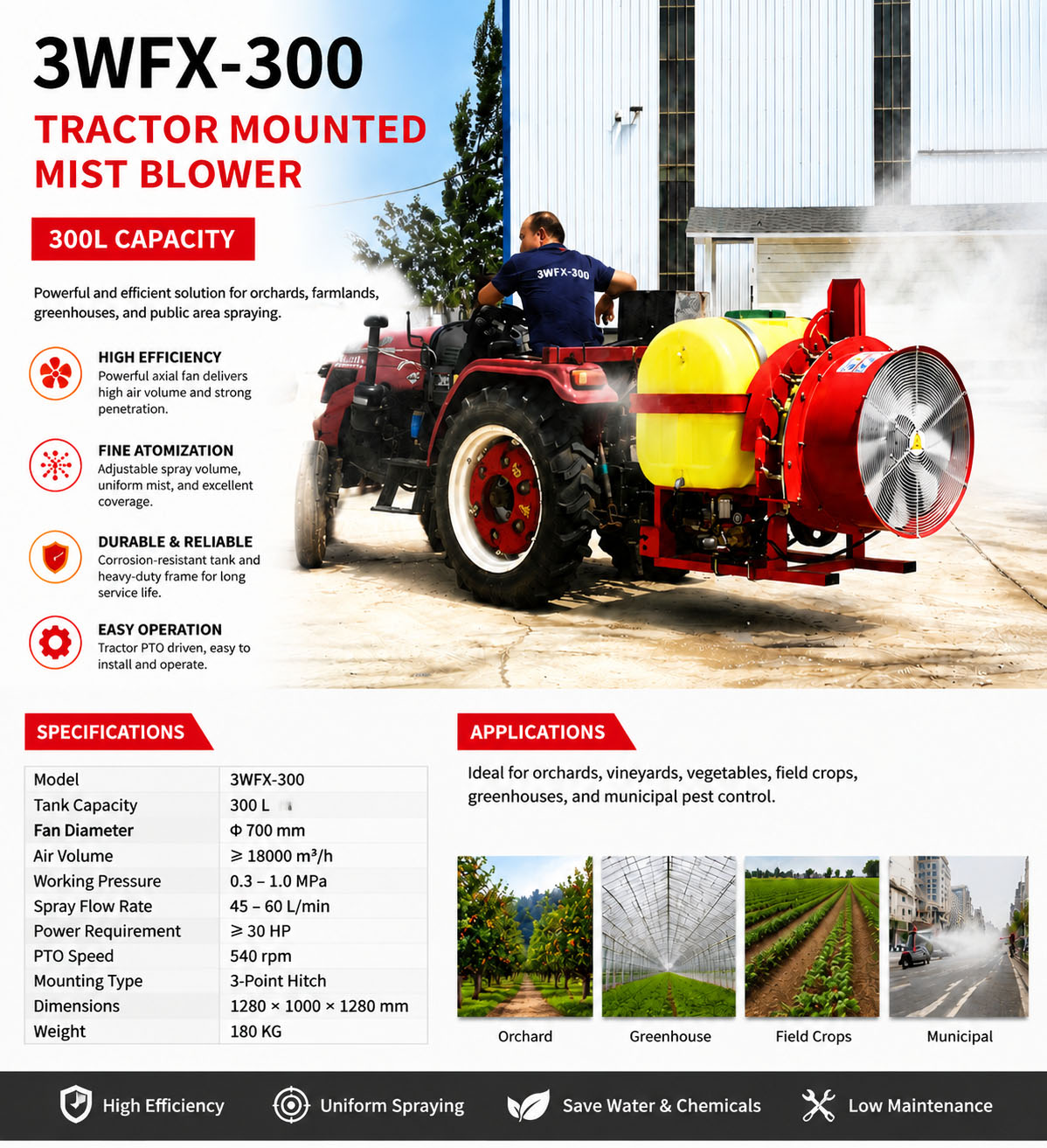

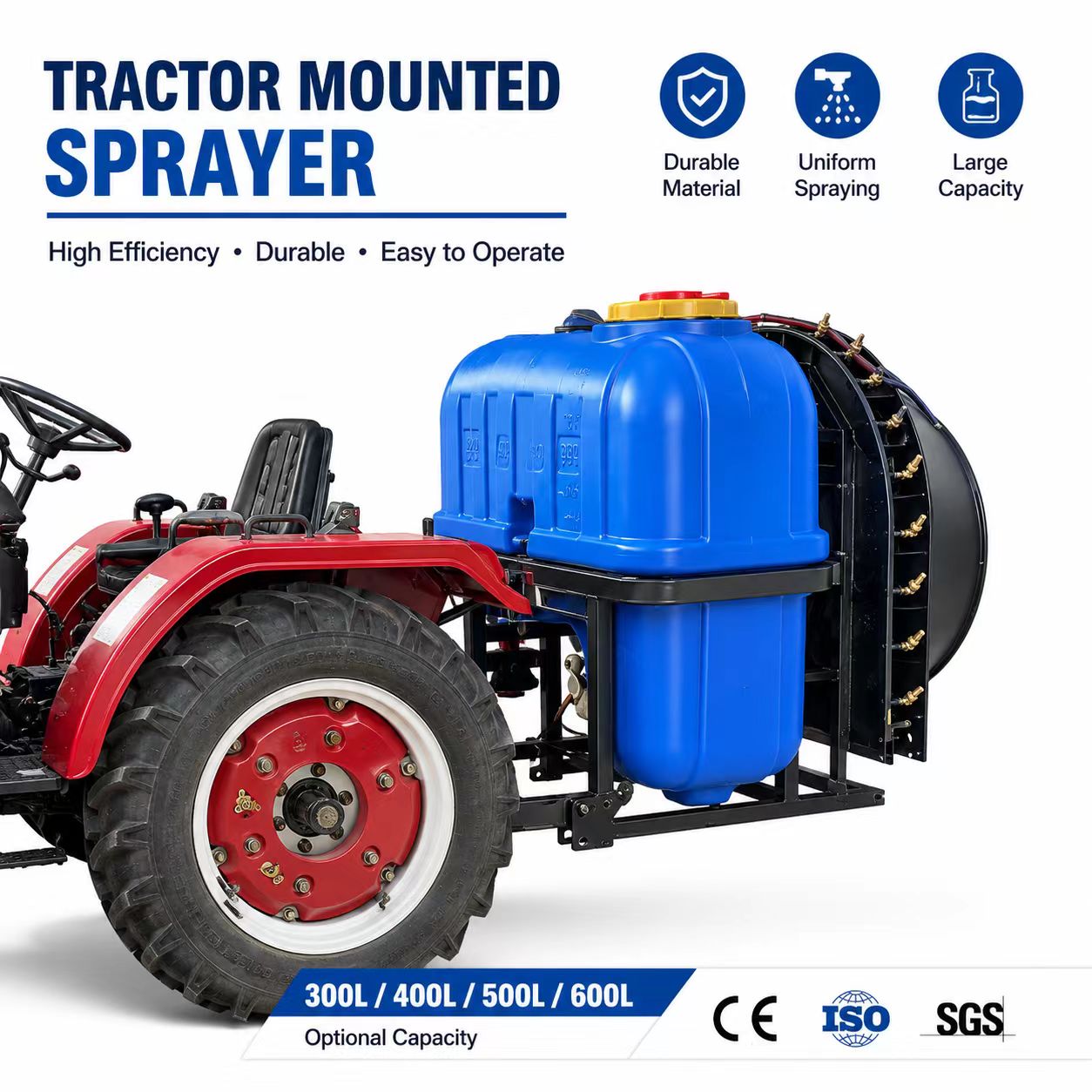

The tractor mounted pesticide spraying machine is a wind driven/spray bar type plant protection machinery that is matched with the three-point suspension at the rear of the tractor. It is driven by the tractor power output shaft (PTO) and is suitable for fields, orchards, gardens and other scenes, achieving efficient pesticide and foliar fertilizer spraying operations.

1、 Core structure

-Suspension frame: Standard three-point suspension, quick disassembly and strong adaptability, suitable for tractors with 30-150 horsepower.
-Medicine box: made of PE material, with a capacity of 200-1000L, equipped with water mixing and liquid level observation to prevent sedimentation and ensure uniform concentration.
-Power and pump set: PTO transmission, equipped with a three cylinder plunger pump/diaphragm pump, pressure of 2-5MPa, flow rate of 40-80L/min, stable and durable.
-Air supply/spray bar system:
-Orchard style: High power fan with a range of 20-60 meters, fine mist droplets (50-100 μ m), and strong penetration.
-Datian style: Hydraulic folding spray bar, spray range of 12-24 meters, multi-stage filtering and anti blocking, can be controlled by the driver's cab.
-Control and Safety: Hydraulic lifting/folding, remote pressure regulation, anti drip nozzle, overload protection, safe and easy operation.

2、 Main features

1. Efficient and labor-saving: Single person, single machine, 180-300 acres per hour, efficiency 20 times higher than manual labor, significantly reducing costs.
2. Strong adaptability: suitable for plains, hills, and mountains; Suitable for fields, orchards, green belts, and protective forests.
3. Uniform atomization: The airflow is strongly diffused by the wind, resulting in good droplet adhesion, minimal drift, and high utilization rate of the medication.
4. Reliable and durable: anti-corrosion frame, high-quality pump body, easy to maintain design, low failure rate, long service life.

3、 Typical parameters (reference)

-Supporting power: 30-120 horsepower
-Medicine box capacity: 300-500L (commonly used)
-Work pressure: 2-4MPa
-Wind driven range: 20-50 meters
-Spray range: 6-24 meters (air supply/spray bar)
-Homework efficiency: 200 acres/hour

4、 Application scenarios

-Datian: Prevention and control of pests and diseases, weeding, and foliar fertilizer spraying for wheat, corn, cotton, and other crops.
-Orchard: Apples, citrus fruits, grapes, etc., penetrating the tree crown and covering in three dimensions.
-Gardens: street trees, green belts, shelter forests, and long-distance spray of tall trees.
-Other: disinfection of breeding farms, sterilization of garbage dumps, and epidemic prevention in public areas
